Xamarin.Forms + Prism.Formsでダイアログを出す

Prism.Formsでは、IPageDialogServiceというインターフェースが提供されていて、ダイアログの表示もばっちりViewModelで出来るようになっています。

IPageDialogServiceには、DisplayAlertメソッドと、DisplayActionSheetメソッドが定義されています。DisplayAlertメソッドは単純なアラートダイアログを出して、DisplayActionSheetメソッドは選択肢を提供するメソッドになります。

DisplayActionSheetメソッドは、キャンセルのメッセージ、破棄のメッセージ、その他のメッセージの可変長引数という形になっています。さくっと使ってみましょう。

public class MainPageViewModel : BindableBase, INavigationAware
{
    private string _title;
    public string Title
    {
        get { return _title; }
        set { SetProperty(ref _title, value); }
    }

    public DelegateCommand AlertCommand { get; }

    public DelegateCommand ConfirmCommand { get; }

    public MainPageViewModel(IPageDialogService pageDialogService)
    {
        this.AlertCommand = new DelegateCommand(async () =>
        {
            await pageDialogService.DisplayAlert("Title", "Hello world", "キャンセル");
        });

        this.ConfirmCommand = new DelegateCommand(async () =>
        {
            var result = await pageDialogService.DisplayActionSheet("Title",
                "キャンセル",
                "破棄",
                "やってやんよ",
                "やってやんよ2");
            await pageDialogService.DisplayAlert("選択したもの", result, "閉じる");
        });
    }

    public void OnNavigatedFrom(NavigationParameters parameters)
    {

    }

    public void OnNavigatedTo(NavigationParameters parameters)
    {
        if (parameters.ContainsKey("title"))
            Title = (string)parameters["title"] + " and Prism";
    }
}

XAML側でボタンを2つおいて、Commandをバインドしておきます。

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             xmlns:prism="clr-namespace:Prism.Mvvm;assembly=Prism.Forms"
             prism:ViewModelLocator.AutowireViewModel="True"
             x:Class="PrismUnityApp9.Views.MainPage"
             Title="MainPage">
  <StackLayout HorizontalOptions="Center" VerticalOptions="Center">
    <Label Text="{Binding Title}" />
    <Button Text="Alert"
            Command="{Binding AlertCommand}" />
    <Button Text="Confirm"
            Command="{Binding ConfirmCommand}" />
  </StackLayout>
</ContentPage>

実行すると、以下のようになります。

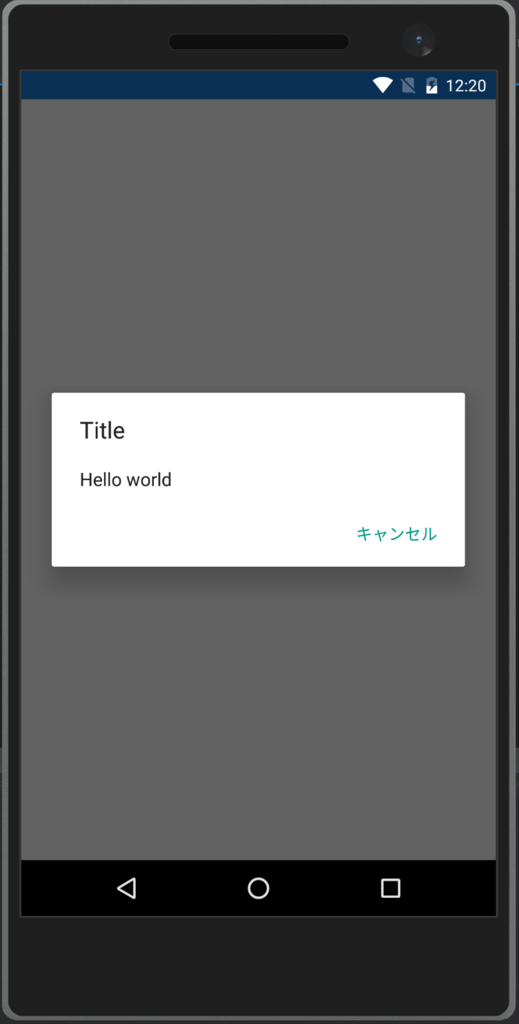

まず、DisplayAlertの場合。

f:id:okazuki:20160423122108p:plain

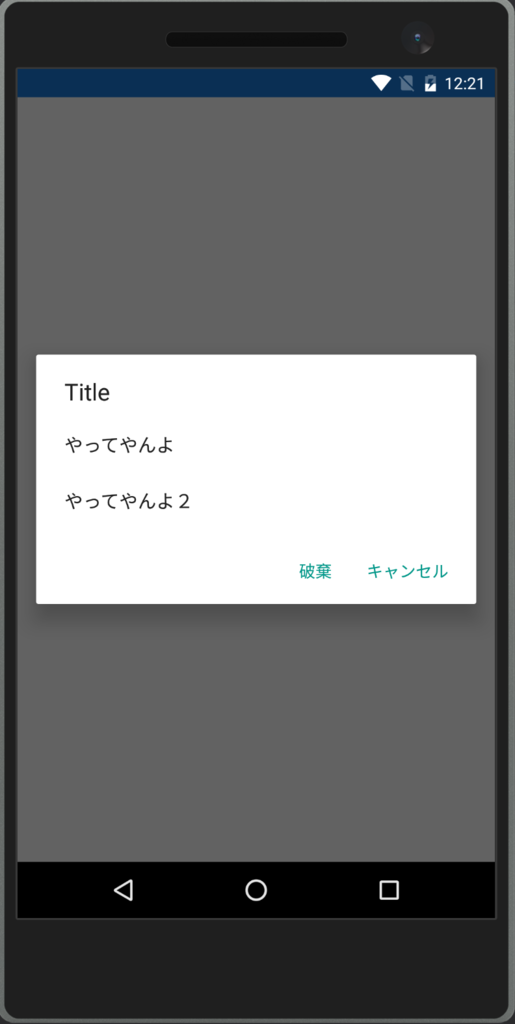

DisplayActionSheetの場合

f:id:okazuki:20160423122150p:plain
