XamarinでPrismを使ったHello world

PrismってXamarinにも対応してるんですよね(Previewですけど)ということで、Hello worldしながら、基本的な手順をやっていこうと思います。

プロジェクトの新規作成

まず、プロジェクトの新規作成を行います。Cross-Platform/Blank App (Xamarin.Forms Portable)を選択します。プロジェクト名は、ここではXamarinPrismHelloWorldにしました。UWPのターゲットバージョンをいくつにするかとか聞かれるのでOKを押してプロジェクトを作成します。

私の場合だけなのかもしれませんが、Xamarin.Formsのプロジェクトを作ったらAndroidのエミュレータ起動できない状態になることがあるのですが、そういう時は一度ソリューションを閉じて開きなおすことで解決します。

Prism.Formsの追加

まず、AndroidのプロジェクトからXamarin.FormsとSupport系のライブラリの参照をNuGetから削除しておきます。これをしないとコンパイルエラーが出る状態になってしまうので気を付けよう。

f:id:okazuki:20160416161737p:plain

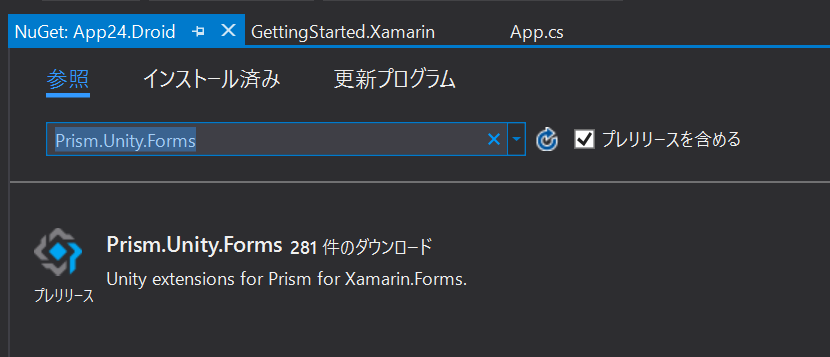

次に、Prism.Unity.FormsをNuGetから全プロジェクトに追加します。

f:id:okazuki:20160416161906p:plain

Appクラスの書き換え

PrismApplicationを継承するように書き直します。

using Prism.Unity;

namespace App24
{
    public class App : PrismApplication
    {
        protected override void OnStart()
        {
            // Handle when your app starts
        }

        protected override void OnSleep()
        {
            // Handle when your app sleeps
        }

        protected override void OnResume()
        {
            // Handle when your app resumes
        }

        protected override void OnInitialized()
        {
        }

        protected override void RegisterTypes()
        {
        }
    }
}

ここには、後で、初期画面に遷移するような処理を追加します。

Viewの作成

次にViewを作成します。Viewは、Views名前空間に定義します。Views/MainPageを作成します。もちろんXAMLで!

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             x:Class="App24.Views.MainPage">
  <Label Text="Hello world" VerticalOptions="Center" HorizontalOptions="Center" />
</ContentPage>

Appクラスへの追記

ページを作ったらAppクラスのRegisterTypesで画面としてUnityのコンテナに登録します。登録にはUnityContainerに定義されている拡張メソッドのRegisterTypeForNavigationを使用します。 ページを登録したら、OnInitializedでMainPageに遷移する処理を書きます。

using App24.Views;
using Prism.Unity;

namespace App24
{
    public class App : PrismApplication
    {
        protected override void OnStart()
        {
        }

        protected override void OnSleep()
        {
        }

        protected override void OnResume()
        {
        }

        protected override async void OnInitialized()
        {
            // MainPageに画面遷移
            await this.NavigationService.Navigate("MainPage");
        }

        protected override void RegisterTypes()
        {
            // ページを登録する
            this.Container.RegisterTypeForNavigation<MainPage>();
        }
    }
}

実行

実行すると以下のように画面が表示されます

f:id:okazuki:20160416163717p:plain

ViewModelの追加

次にViewModelを追加してみます。PrismにはViewとViewModelを命名規約(カスタマイズは可能)によって紐づける機能があります。 この機能を有効化するにはViewにViewModelLocator.AutowireViewModel="True"を追加する必要があります。なのでMainPage.xamlは以下のような感じになります。

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             xmlns:prism="clr-namespace:Prism.Mvvm;assembly=Prism.Forms"
             prism:ViewModelLocator.AutowireViewModel="True"
             x:Class="App24.Views.MainPage">
  <Label Text="Hello world" VerticalOptions="Center" HorizontalOptions="Center" />
</ContentPage>

次にViewModels名前空間にMainPageViewModelという名前でViewModelクラスを作成します。ViewModelクラスはViewのクラス名 + ViewModelという名前で作ります。

以下のような感じでコマンドもつけてみましょう。BindableBaseというクラスはPrismが提供しているINotifyPropertyChangedのデフォルト実装クラスになります。

using Prism.Commands;
using Prism.Mvvm;
using System;

namespace App24.ViewModels
{
    public class MainPageViewModel : BindableBase
    {
        private string message;

        public string Message
        {
            get { return this.message; }
            set { this.SetProperty(ref this.message, value); }
        }

        public DelegateCommand UpdateMessageCommand { get; }

        public MainPageViewModel()
        {
            this.UpdateMessageCommand = new DelegateCommand(() => this.Message = DateTime.Now.ToString());
        }
    }
}

これに合わせてViewも書き換えます。

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             xmlns:prism="clr-namespace:Prism.Mvvm;assembly=Prism.Forms"
             prism:ViewModelLocator.AutowireViewModel="True"
             x:Class="App24.Views.MainPage">
  <StackLayout HorizontalOptions="Center"
               VerticalOptions="Center">
    <Label Text="{Binding Message}" />
    <Button Text="UpdateMessage"
            Command="{Binding UpdateMessageCommand}" />
  </StackLayout>
</ContentPage>

実行すると以下のように表示されます。ボタンを押すとLabeのTextが更新されます。

まとめ

こんな感じでPrism.Formsのプロジェクトを作っていきます。後は、ViewやViewModelを追加していって作っていくだけです。 その他の機能についてはおいおい説明していこうと思います。

因みに

拡張機能でPrismで検索して出てくるPrismのテンプレートパックをインストールすると、ここらへんの下準備をしてくれたプロジェクトテンプレートが追加されてるのでそれを使うと幸せです。

f:id:okazuki:20160416164758p:plain

f:id:okazuki:20160416164428p:plain
